Container, Mobile Treatment Plants for Drinking and Technological Water

Container, Mobile Treatment Plants for Drinking and Technological Water





Container, mobile water treatment plants are an optimum and highly flexible way of the fast obtaining of drinking water from wells, open resources, side and shore wells, sea and brackish water. They provide and ensure perfectly clean drinking water for permanent as well as emergency assurance of drinking water according to the strictest hygiene standards.



The container water treatment plants can be used also for water treatment in industrial applications [tertiary treatment of waste water, production of ultra-clean water …].



The water treatment systems are embedded in the ISO containers [10ft., 20ft. and 40ft.].



Each container treatment plant is a unique system proposed and manufactured according to the particular specification and requirements of the customer.

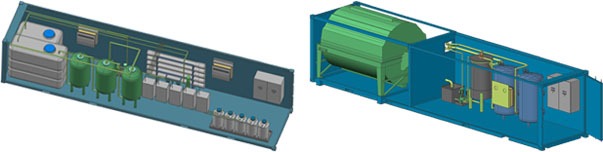

Drinking water treatment plant [16m³/hr] A fully automatic system in the 40ft. container Water from a well with a high content of salts Including pre-filtration, chemical dispensing and a storage tank

Industrial waste water treatment plant [22m³/hr] A fully automatic system in the 40ft. container. Biological waste water treatment plant Including aeration, chemical dispensing and tertiary final treatment









Container Systems for Drinking Water Treatment



The technology designed by our company, together with our experience and top-quality components which we use ensure that our customers receive a system with long-term and trouble-free operation with production of high-quality drinking water.



The container treatment plants are fully automated and guarantee a non-stop operation. They can be used for water supplies for as many as 5,000 people a day.



While designing our systems we take into consideration water analysis as well as all other information provided by the customer.



The treatment plants can be used for any water sources – wells, drill holes, river, side and shore wells, sea, contaminated water during natural disasters …





Basic components of technologies



Dosing Panels

Static Mixers

Pump

Media Filter

Control Unit





Basic technological description of drinking water treatment in the container







Drinking water treatment plant [8m³/hr] Fully automatic system in a 40ft. container Water source: well

Drinking water treatment plant [53m³/hr] System with a manual rinsing in a 20ft. container Water source: deep well









Emergency Systems for Drinking Water Treatment



Universal systems for temporary supply of people with drinking water at natural disasters, for assurance of drinking water for defence forces …



Our treatment plants ensure supply with high-quality drinking water from a water source, no matter how contaminated it may be.



A part of the complete technology may be formed also by tapping of water into bags, PET bottles, sacks …





System of Drinking Water Production from Open Sources

1)   Flexible Container Cover   2)   Bottling Machine   3)   Bottling Buffer 1m³ Tank    4)   Clarifier Stand   5)   Centrifugal Clarifier   6)   Raw Water Delivery Pump   7)   Water Outlet Pipe Line   8)   PLC Controller   9)   Pressure Pump 10)   pH Controller

11)   Free Chlorine Analyzer 12)   Turbidity Meter 13)   Electronic Dosing Pump 14)   Chemicals Tanks 15)   Static Mixer 16)   Multi Media Sand Filter 17)   Active Carbon Media Filter 18)   Reservoir Inlet/Outlet Pipe Line 19)   100m³ Foldable Storage Tank 20)   RO Membrane System





System of Drinking Water Production from Sea Water











Compact Systems for Drinking Water Treatment



Compact systems are designed and assembled for treatment of a small water quantity from different sources so that they can ensure production of high-quality drinking water.



The system is able to supply 20m³ ~ 150m³ of treated water per day [depending on the size of the system].



The basic design feature of the system is its location on a special frame [pedestal]. This is a »plug & play« system which includes all necessary equipment and means for the drawing of raw water, its treatment and subsequent supply with high-quality drinking water. The compact system is intended for a fast installation and immediate start-up.



Small compact systems designed in a purposeful way are intended for water treatment in remote areas, in small towns, production plants, in the sites of temporary assemblies, camps and farms.





1. Upper Service Hole 2. Upper Water Diffuser 3. Drain 4. Membrane Valve 5. Flocculant Dosing Pump 6. Water Meter Electric Output Signal

7. Chlorine Dosing Pump   8. SA500 Semi-Automatic Filter   9. Sand Separator 10. Raw Water Inlet Pump 11. Filter Element 12. Flush Water Pump

13. Gravel 3.1 - 5.6mm 14. Sand 0.8 - 1.2mm 15. Sand 0.5 - 0.8mm 16. Control Unit 17. Filter Body 18. Air Valve







If your request concerns a treatment plant for drinking or industrial water, installed in a container or a mobile treatment plant, please contact us and we will draw up, free of charge, a proposal for the most suitable solution for you, on the basis of a raw water analysis, required filtration capacity [m³/hr] and required quality of output water.





High Quality Water No Matter Where It Comes From
