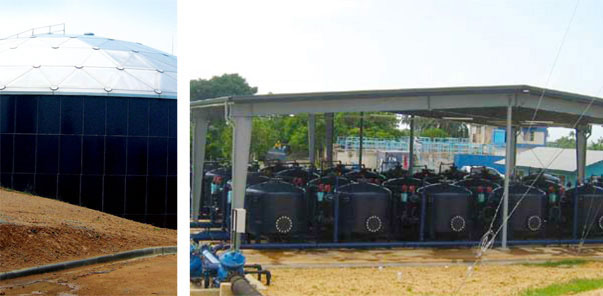

Drinking Water

Application:

Drinking water [1080m³/hour]

Water Source:

River

Treatment Process:

Pretreatment, low media filtration, deep media filtration, chemical treatment

Results:

High quality drinking water provided on a continuous basis

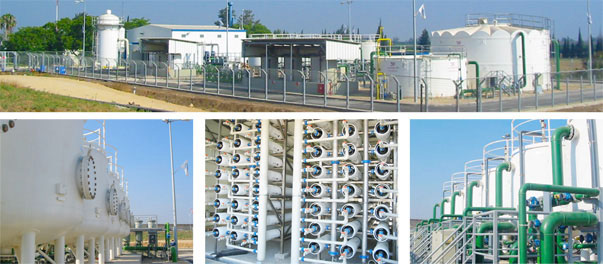

Application:

Drinking water production [400m³/hour]

Water Source:

Brackish water from bore well [2500ppm]

Treatment Process:

High media filtration, reverse osmosis system with degassing

Results:

High quality drinking water

Application:

Iron removal and bad smell from water [120m³/hour]

Water Source:

Well

Treatment Process:

Pre-filtration with automatic hydraulic screen filter, chemical injection, high media filters, active carbon filtration, and post-chlorination

Results:

Good quality drinking water free from iron and odor according to standard

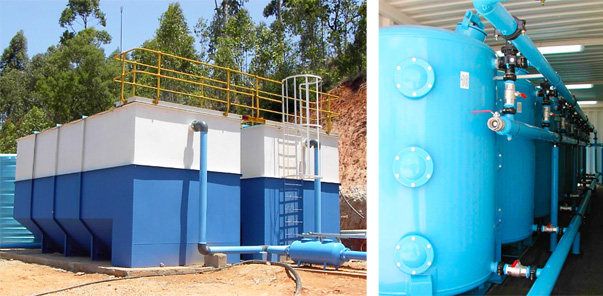

Application:

Drinking water [1200m³/hour]

Water Source:

River

Treatment Process:

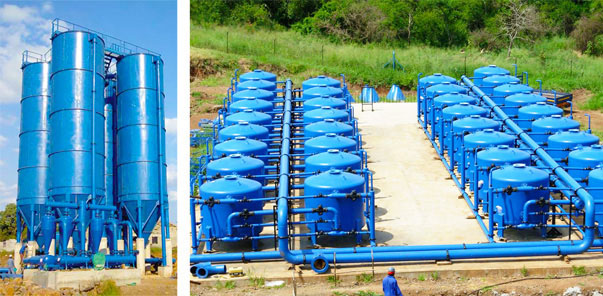

Pumping from the river, sand separation, clarifier, media filtration, backwash and storage

Results:

Good quality drinking water NTU bellow 0.5 color below 5

Application:

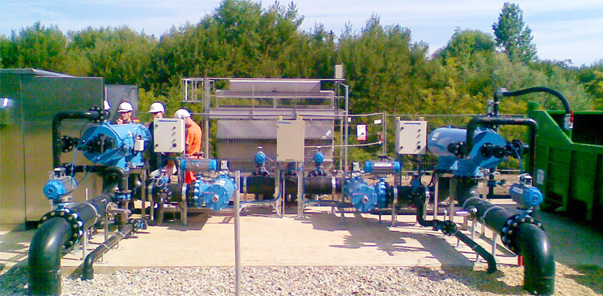

Drinking water [1000m³/hour]

Water Source:

River water

Treatment Process:

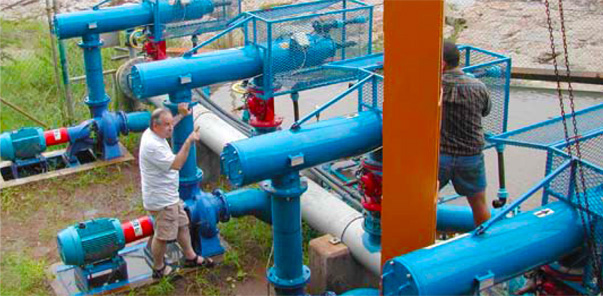

Pre-filtration and suction scanner filters

Results:

Reducing the TSS to the right standard before the media filtration system

Application:

Drinking water for drill platform [80m³/hour]

Water Source:

Bore hole

Treatment Process:

Pumping water from the well, pre-filtration with automatic filter, dosing chemicals, sand filter with high media, filter with active carbon, storage tank

Results:

High quality drinking water

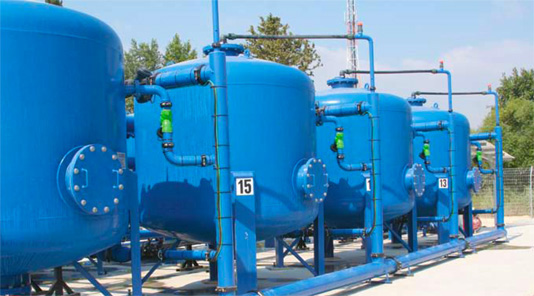

Application:

Drinking water [450m³/hour]

Water Source:

River

Treatment Process:

Pre-filtration with automatic hydraulic filters, deep media filtration, final disinfection

Results:

High quality drinking water

Application:

Drinking water [900m³/hour]

Water Source:

Artesian well

Treatment Process:

Pre-filtration with automatic hydraulic filters, automatic dosing of coagulant and disinfection, low speed deep media filtration

Results:

High quality drinking water

Application:

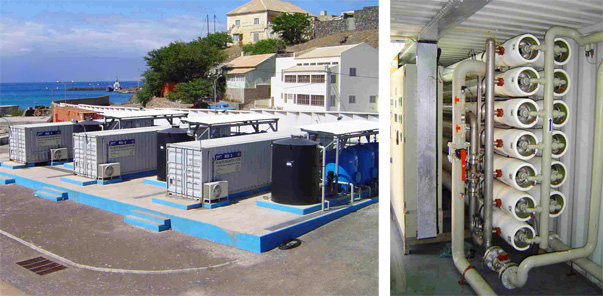

Stationary seawater treatment plants for seaside resort needs [210m³/hour]

Treatment Process:

Three identical filtration systems. Sea water sedimentation, pre-filtration with high media sand filters, reverse osmosis units in containers

Results:

Supply of quality drinking water to the population of the island

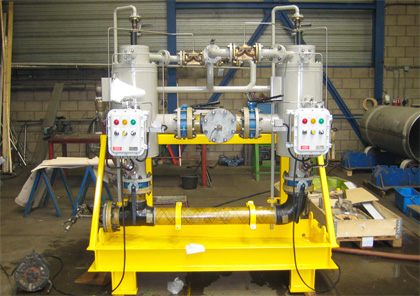

Application:

Seawater pre-filtration before reverse osmosis, drill platform [2 x 400m³/hour]

Treatment Process:

Pre-filtration pumping water with SST automatic electric self-cleaning filters AF-912 with extra fine screen. System on skid, high sea water resistant

Results:

Continuous supply of water for final treatment

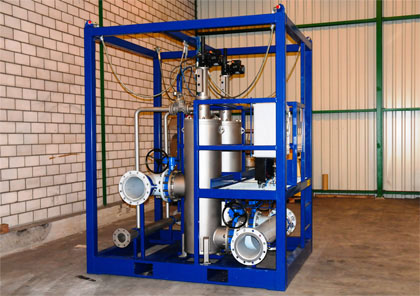

Application:

Pre-filtration of main water supply to the drill platform [300m³/hour]

Water Source:

Arab Gulf

Treatment Process:

Pre-filtration with automatic hydraulic filters AF-208SW

Housing made from 6MO stainless steel, internals titanium and marine bronze

Flushing valve: seawater resistant aluminum

Screen: weave wire screen from INCONEL, PVC support

Tubes and fittings - all stainless steel 316 L

PP 03 PLC controllers (safety redundancy) with “slave connection” - fitted in explosion-proof enclosure

Filter design and manufacture according to ASME stamped

Results:

Excellent pre-filtration system, long-term seawater resistant

Application:

Drinking water pre-filtration [800m³/hour]

Water Source:

2 x well

Treatment Process:

Pre-filtration with manual screen filters, fine filtration with automatic electric filters AF-910PR, screen 100µm

Results:

Water without mechanical particles, prepare for following treatment

Application:

Drinking water – pre-filtration brackish water for global corporation [2400m³/hour]

Treatment Process:

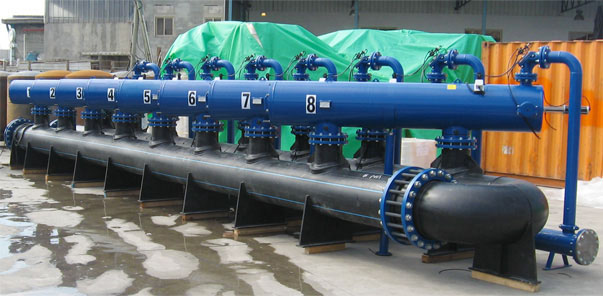

Removal of solid particles from raw water with 8 x AF-808LOPR, automatic filters are parallel install to pipeline, next installation to container

Results:

Water without mechanical particles, prepare for following treatment

Application:

Mobile containerized in & out, plug & play drinking water system [3200m³/day]

Water Source:

Spring

Treatment Process:

Pumping from the spring, clarifier, media filtration, backwash and storage

Results:

Good quality drinking water NTU bellow 0.5 color below 5
